Jeti Tauro H3300 LED

Jeti Tauro H3300 LED

This hybrid large-format UV LED inkjet printer family combines award-winning print quality with extreme productivity, cutting-edge automation and low ink consumption.

Produce smooth, detailed prints up to 3.3 m wide at up to 905 m2/h. Thanks to the rapid UV LED curing of Agfa’s signature high-pigmented UV inks and the smart automation features of the Asanti workflow software, these hybrid UV inkjet workhorses exceed expectations every time.

In the Jeti Tauro H3300 LED printers, you will find heavy-duty, ruggedly built workhorses that easily handle extreme workloads, multiple-shift operation and 24/7 printing. Suited for a variety of rigid and flexible substrates, these printers offer you countless options to create eye-catching large-format prints. They can be deployed in six configurations with different automation options.

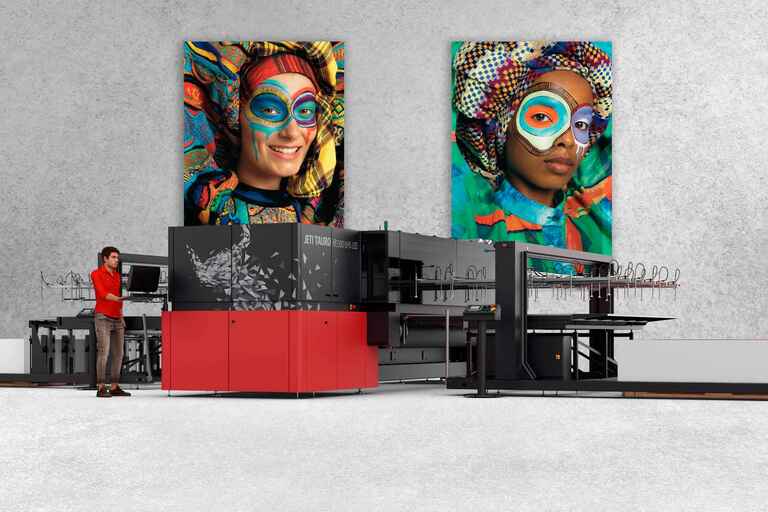

Jeti Tauro H3300 UHS

Jeti Tauro H3300 LED printer family

Jeti Tauro H3300 UHS LED

  • Ultra-high-speed top model, fit for the very highest productivity
  • Up to 905 m²/h
  • 4-color version for top-notch productivity, reaching sellable production quality in 2 or 3 passes
  • 6-color version that excels in print quality
  • Optional white, or white and primer
  • Varnish
  • Advanced automation
  • Extended vacuum for cardboard printing
  • Optional camera for accurate double-sided printing

Jeti Tauro H3300 LED

  • The original model
  • Up to 680 m²/h
  • 4-color version for top-notch productivity, reaching sellable production quality in 2 or 3 passes
  • 6-color version that excels in print quality
  • Optional white, or white and primer
  • Optional camera for accurate double-sided printing

Jeti Tauro H3300 HS LED

  • ‘High speed’ upgrade of the standard model
  • Up to 680 m²/h
  • 6 colors
  • Optional white, or white and primer
  • Varnish
  • Optional camera for accurate double-sided printing

Jeti Tauro H3300 S LED

  • ‘Standard’ model that can be upgraded as your workloads increase
  • Up to 450 m²/h, but can be upgraded to 680 m²/h
  • 6 colors
  • Optional white, or white and primer
  • Optional camera for accurate double-sided printing

Key benefits

  • Hybrid solution: prints flawlessly on both rigid and flexible media
  • Heavy-duty: built for 24/7 printing
  • Impressive productivity and multiple automation options
  • Award-winning image quality in four or six colors plus white or primer
  • UV LED technology bringing economic and ecological benefits
  • Thin Ink Layer technology for lowest ink consumption
  • Powered by smart Asanti workflow software

Heavy-duty robustness

In the Jeti Tauro H3300 LEDs, you’ll find heavy-duty hybrid printers that are built for multiple-shift operation and 24/7 printing. Maintenance is limited and easy, guaranteeing the highest possible uptime.

When developing the UHS model, we went all out to make it fit for extreme workloads. We equipped it with additional print heads, added a high-speed loader with a double gantry to process media even faster, built in 20-liter ink tanks for greater autonomy, strengthened the beam and the linear motors, and added a more powerful PC to process large files or large numbers of jobs.

Automated operations

For larger runs or runs with multiple board stacks, all Jeti Tauro H3300 models throw in several automation options to up your production efficiency. These include an automatic board feeder (ABF), as well as a fully automated feeding and unloading system.

The UHS model has an extended automatic loader and unloader. The former features a double-gantry setup for even smoother and faster loading, in sync with the engine’s phenomenal printing speed.

Industry-leading print quality for extremely vivid prints

Whatever you are creating, the Jeti Tauro printers, powered by Agfa’s signature UV LED-curable inks, deliver a wide color gamut and high color vibrancy. Asanti’s color management module allows for accurate mapping of spot colors and neutral gray printing, while the robustness of the printers and their precise media transport, combined with specific jetting algorithms and masking technology, results in excellent solid color reproduction on a wide variety of media. The 6-color models include light black (CMYKLcLk), guaranteeing a perfect neutral gray balance.

Your customers will enjoy a print quality resembling offset printing, with fine details and smoothness throughout. The 7-pl droplets produce stunning images at 635 x 1200 dpi with a fine rendering of shadow and highlight details, and razor-sharp texts in as small as 4-point type both in positive and negative text. The printers also excel in smooth ramp-ups over the tonal range, with outstanding skin tone rendering.

Jeti Tauro H3300 UHS Ink

Specifications

Models

Jeti Tauro H3300 S LED

  • Jeti Tauro H3300 S LED 6C – 6 colors (24 heads)
  • Jeti Tauro H3300 S LED 6C W8 – 6 colors and white (32 heads)
  • Jeti Tauro H3300 S LED 6C W6P2 – 6 colors, white and primer (32 heads)

The Jeti Tauro H3300 S LED is upgradable to the speed of the Jeti Tauro H3300 LED

Jeti Tauro H3300 HS LED

  • Jeti Tauro H3300 HS LED 6C V4 – 6 colors and varnish (40 heads)
  • Jeti Tauro H3300 HS LED 6C W12V4 – 6 colors, white and varnish (52 heads)
  • Jeti Tauro H3300 HS LED 6C W8P4V4 – 6 colors, white, primer and varnish (52 heads)

Jeti Tauro H3300 LED

  • Jeti Tauro H3300 LED 4C/6C – 4 colors or 6 colors (48 heads)
  • Jeti Tauro H3300 LED 4C/6C W12 – 4 colors or 6 colors and white (60 heads)
  • Jeti Tauro H3300 LED 4C/6C W8P4 – 4 colors or 6 colors, white and primer (60 heads)

Jeti Tauro H3300 UHS LED

  • Jeti Tauro H3300 UHS LED 4C/6C – 4 or 6 colors (64 heads)
  • Jeti Tauro H3300 UHS LED 4C/6C W16 – 4 or 6 colors and white (80 heads)
  • Jeti Tauro H3300 UHS LED 4C/6C W12P4 – 6 colors, white and primer (80 heads)

Download the Jeti Tauro H3300 LED brochure to see the full specification

Media typesRigid as well as flexible media (check with your local Agfa representative for a detailed list)
Print headsPiezoelectric Ricoh MH5420
Image qualityResolution up to 1200 dpi
Text quality4 point
Operating temperatureBetween 16-25°C (61-77°F)
Relative humidityBetween 40-60%
