Supercristal
Supercristal is a flexible, high-clarity 0.50 mm transparent PVC film, specifically developed for use in demanding outdoor and industrial applications.
Manufactured using a durable resin blend, Supercristal offers excellent UV resistance, low thermal conductivity, and fire-retardant performance to B1 (DIN 4102) standard.

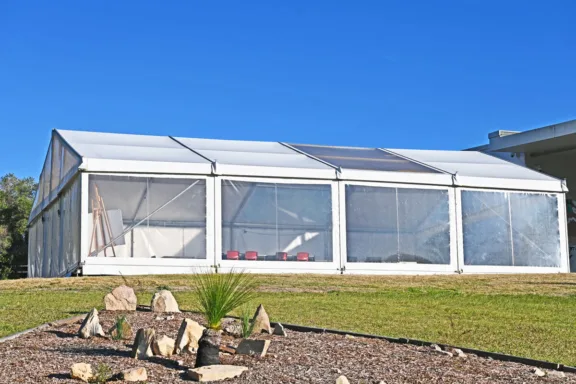

With outstanding mechanical strength and transparency, Supercristal is ideal for marquee windows, tent panels, marine windows, industrial covers, and outdoor screens where visibility and weather protection are essential.
Supercristal flexibility and durability supports easy fabrication, making it suitable for the manufacture of both small and large-scale structures. Available in 1.4 m width as standard, with a 1.8 m option on request.
Features
- Crystal-clear finish for unobstructed visibility in structural applications
- Formulated to resist yellowing and degradation under prolonged sun exposure
- Fire Retardant to B1 (DIN 4102)
- High tensile and tear strength ensure stability and resistance under tension
- Maintains softness and flexibility for ease of handling, cutting, and welding
- Low thermal conductivity and durable waterproof barrier protect against wind and rain
- Suitable for marquees, tents, marine glazing, screens, and clear industrial enclosures
Specifications:
| Characteristics | Metric |
|---|---|
| Thickness (mm) | 0.50 ± 0.10 |
| Total Mass (g/m²) | 620 ± 60 |
| Breaking Load (daN/50mm) | L : 550 T : 450 |
| Breaking Extension (%) | L : 600 T : 600 |
| Tear Strength (daN) | L : 10 T : 10 |
| Burning Behaviour | B1 |
L – Along | T – Across
The information above is for guidance purposes only. The purchaser should independently determine, prior to use, the suitability of this material for their specific purpose. For more detailed information download our specification sheet.
